Cross-platform Linux/Windows/MacOS Tray

Cross-platform, super tiny C99 implementation of a system tray icon with a popup menu.

Works well on:

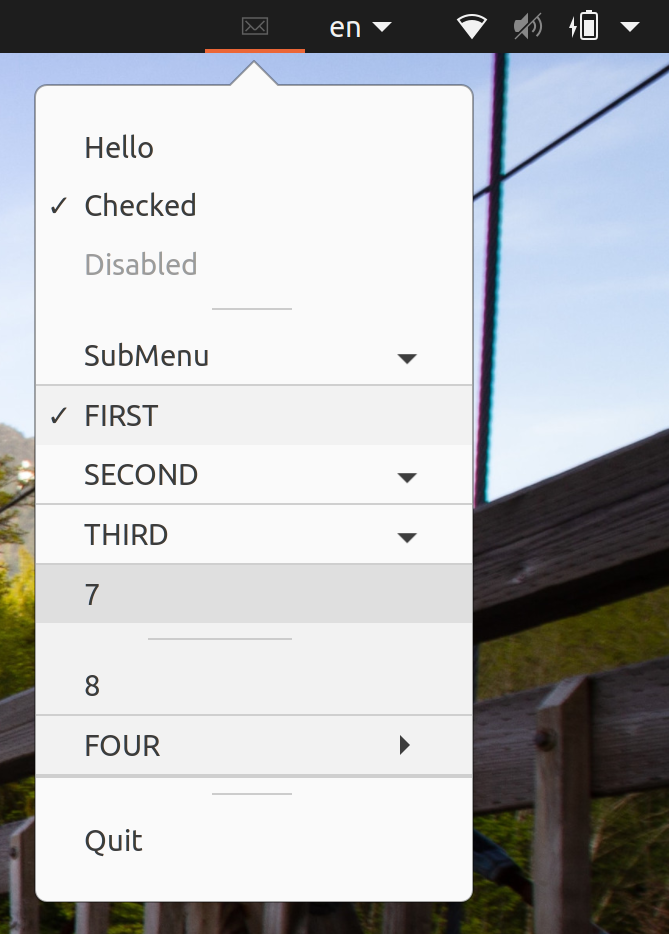

• Linux/Gtk (libappindicator)

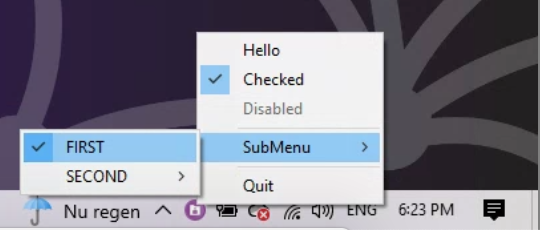

• Windows XP or newer (shellapi.h)

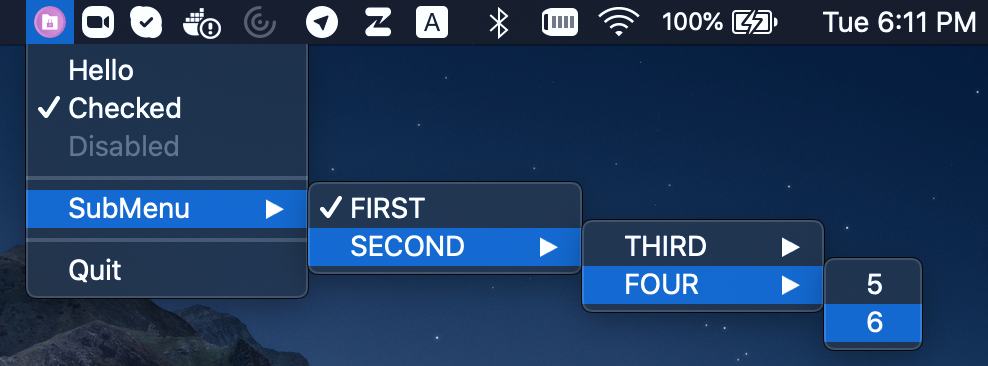

• MacOS (Cocoa/AppKit)

The code is C++ friendly and will compile fine in C++98 and up.

This fork is intended to bring together the original work of Serge Zaitsev and the most interesting forks and PRs of respectable contributors:

• Only process messages coming from the tray window on Windows
• Become C++-friendly
• Fix all menu items have a check box
• Add support for tooltip
• Darwin implementation translated from C to Objective C adapted from @trevex fork

Prerequisites

• CMake
• Ninja, in order to have the same build commands on all platforms
• AppIndicator on Linux:

sudo apt install libappindicator3-dev

Building

mkdir build
cd build
cmake -G Ninja ..
ninja

Demo

Execute the tray_example application:

./tray_example

API

A tray is defined by an icon, an optional tooltip and a menu. The menu is a NULL-terminated array of items. Each menu item can be disabled, checked, represented as a checkbox and invoke a callback with an optional context pointer.

struct tray {
  const char *icon;
  char *tooltip;
  struct tray_menu *menu;
};

struct tray_menu {
  const char *text;
  int disabled;
  int checked;
  int checkbox;

  void (*cb)(struct tray_menu *);
  void *context;

  struct tray_menu *submenu;
};

• int tray_init(struct tray *) - creates the tray icon and its menu. Returns -1 if the tray icon or menu cannot be created.
• void tray_update(struct tray *) - updates the tray icon, tooltip and menu state.
• int tray_loop(int blocking) - runs one iteration of the UI loop. Returns -1 after tray_exit() has been called.
• void tray_exit(void) - terminates the UI loop and cleans up tray resources.

All functions are meant to be called from the UI thread only.

Menu arrays must be terminated with a NULL item, i.e. the last item in the array must have text == NULL.

Notes

• tooltip is optional.
• A separator is created by using text = "-".
• Some behavior may depend on the underlying backend or desktop environment. Keep the public API generic and treat platform-specific interaction details as backend-specific implementation behavior.

License

This software is distributed under MIT license, so feel free to integrate it in your commercial products.
