Cross-platform Linux/Windows/MacOS Tray

Cross-platform, single header, super tiny C99 implementation of a system tray icon with a popup menu.

Works well on:

• Linux/Gtk (libappindicator)
• Windows XP or newer (shellapi.h)
• MacOS (Cocoa/AppKit)

The code is C++ friendly and will compile fine in C++98 and up.

This fork is intended to bring together the original work of Serge Zaitsev and the most interesting forks and PRs of respectable contributors:

• Only process messages coming from the tray window on Windows
• Become C++-friendly
• Fix all menu items have a check box
• Add support for tooltip
• Darwin implementation translated from C to Objective C adapted from @trevex fork

Building

mkdir build
cd build
cmake ..

• On Linux/MacOS run the resulting Makefile with make
• On Windows build the resulting Visual Studio solution

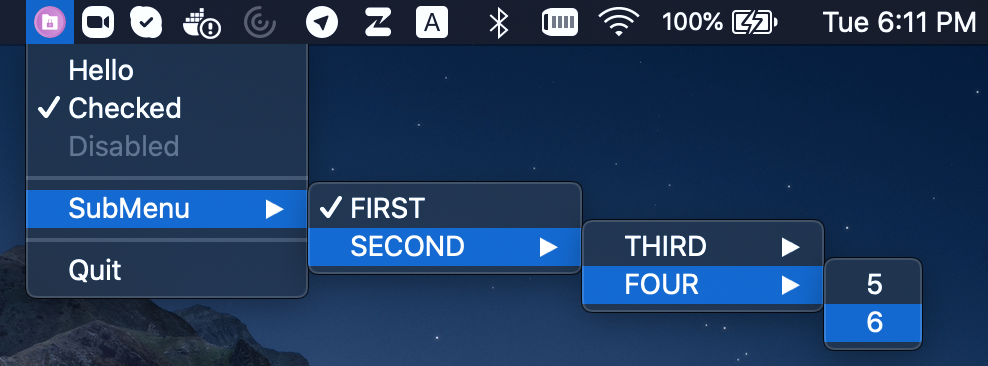

Demo

Execute the tray_example application:

./tray_example

API

Tray structure defines an icon and a menu. Menu is a NULL-terminated array of items. Menu item defines menu text, menu checked and disabled (grayed) flags and a callback with some optional context pointer.

struct tray {
  char *icon;
  struct tray_menu *menu;
};

struct tray_menu {
  char *text;
  int disabled;
  int checked;

  void (*cb)(struct tray_menu *);
  void *context;

  struct tray_menu *submenu;
};

• int tray_init(struct tray *) - creates tray icon. Returns -1 if tray icon/menu can't be created.
• void tray_update(struct tray *) - updates tray icon and menu.
• int tray_loop(int blocking) - runs one iteration of the UI loop. Returns -1 if tray_exit() has been called.
• void tray_exit() - terminates UI loop.

All functions are meant to be called from the UI thread only.

Menu arrays must be terminated with a NULL item, e.g. the last item in the array must have text field set to NULL.

License

This software is distributed under MIT license, so feel free to integrate it in your commercial products.
